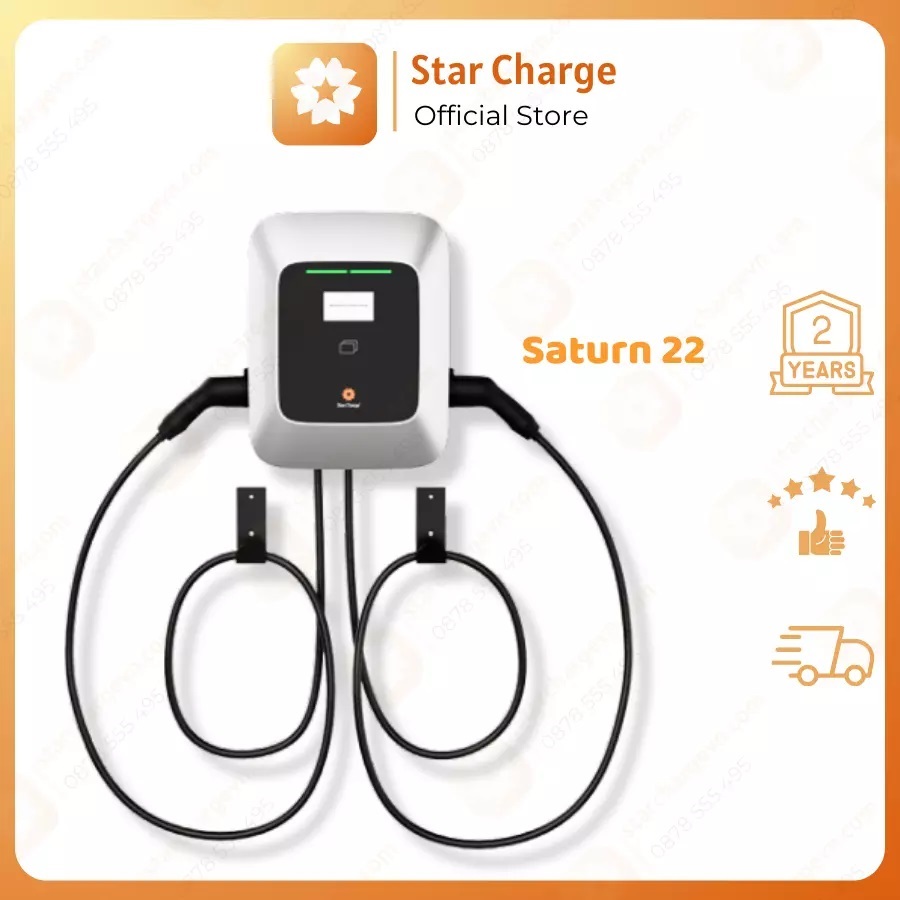

Electric car charger SATURN 22 STAR CHARGE Type 2 port - GENUINE

Electric car charger SATURN 22 STAR CHARGE Type 2 port - GENUINE

1. Saturn 22 car charger product information:

- From China.

– Brand: Star Charge.

– Product line: AC charger.

– Classification: Saturn 22.

– Condition: new.

– Specification: black.

– Dimensions: 395*504*197mm.

– Weight: approximately 11 kg (case B), approximately 16 kg (case C).

– Target users: all types of type 2 electric cars, Vinfast car chargers, car chargers at home.

– Warranty:  2 years.

2. Saturn 22 STARCHARGE electric car charger with Type 2 port – GENUINE is a charging line with  Type 2. Maximum charging capacity is 22kw/32A.

3. Uses

Saturn 22 KW STARCHARGE electric car charger Type 2 port - GENUINE has the following uses:

– Over-current, over-voltage, over-temperature, reverse and short circuit protection, helping to protect the safety of electric vehicles and users.

– In addition, the Saturn 22 home car charger is a home charger that automatically shuts off power when it reaches a full battery level, helping to ensure safe and effective charging.

– Suitable for all car models with type 2 charging port (type 2) and for all models of Vinfast car chargers.



4. Technical specifications for electric car charger:

– Input/output voltage threshold: 400Vac±10%, 2*3 phases, 50/60Hz, L1+L2+L3+N+PE.

- Output:

Output interface: 2 charging ports

IEC 62196-2 Type 2 port (Case C).

IEC 62196-2 port Type 2 (Case B).

Maximum AC output power: 2 x 22kW/2 x 32A max.

– Mesh type: TN-S, TN-C, TN-C-S, TT.

5. User interface:

– Display 4.3 inch touch screen.

– Language support English (Other languages ​​available upon request).

– Buttons and Switches Emergency Button.

– User authentication RFID Card, App, Credit Card (optional).

– RFID reader ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693.

6. Connect

– Network interface: 4G, Wifi (optional), Ethernet.

– Protocol: (EVSE&Backend) OCPP 1.6J.

– Protocol: (EVSE&EV) DIN 70121, ISO 15118.

7. Operating environment

– Operating temperature -25℃ to 45℃.

– Storage temperature -40℃ to 70℃.

– Humidity 5% to 95% non-condensing.

– Altitude ≤2000m above sea level.

8. Mechanical parameters:

– Installation: Fixed installation on the ground

– Cable length: 5m.

– IP waterproof and dustproof protection level: IP54@Case B, IP55@Case C.

– IK bearing level: IK10.

9. Certification and standards for Saturn 22 car charger

– Standards: IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU.

– Certificate:  CE.
