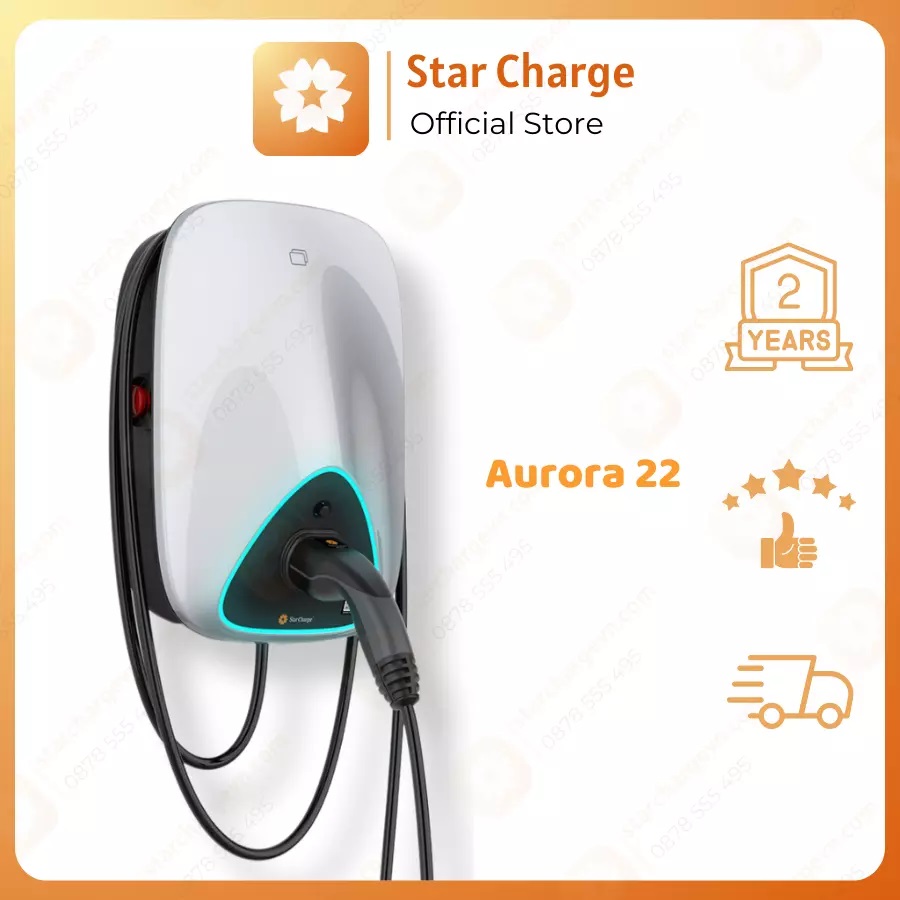

Aurora 22KW STAR CHARGE electric car charger Type 2 port - GENUINE

Aurora 22KW STAR CHARGE electric car charger Type 2 port - GENUINE

1. Product information:

- From China.

– Brand: Star Charge.

– CO CQ: yes.

– Product line: AC charger.

– Classification: Aurora 22

– Condition: new.

– Specification: light gray

– Dimensions: 282*409*148mm (WxHxD).

– Weight: approximately 4.4 kg.

– Warranty:  2 years.

– Target: suitable for all car models with type 2 charging port.

2. Aurora 22KW STAR CHARGE electric car charger Type 2 port - GENUINE is a 22kw/32A charger.

3. Aurora 22KW STAR CHARGE electric car charger Type 2 port - GENUINE has the following uses:

– Over-current, over-voltage, over-temperature, reverse and short circuit protection, helping to protect the safety of electric vehicles and users.

– In addition, Aurora also has an automatic power-off feature when the battery level is full, helping to ensure safe and effective charging.

4. Technical specifications:

– Charging mode: Mode3 (IEC 61851-1).

– Power and input/output current: Maximum 22kW/32A.

– Input/output voltage: 400Vac±10%, 3 phase, 50/60Hz, L1+L2+L3+N+PE.

5. Charging interface

– Configuration: 1: 1 x type 2 cable connection plug according to IEC 62196-2 (Type C).

– Configuration 2: 1 x Socket type 2 according to IEC 62196-2 (Type B).

– Protection: Overcurrent, Overvoltage, Undervoltage, Residual current, Short circuit, Overheating, anti-shock.

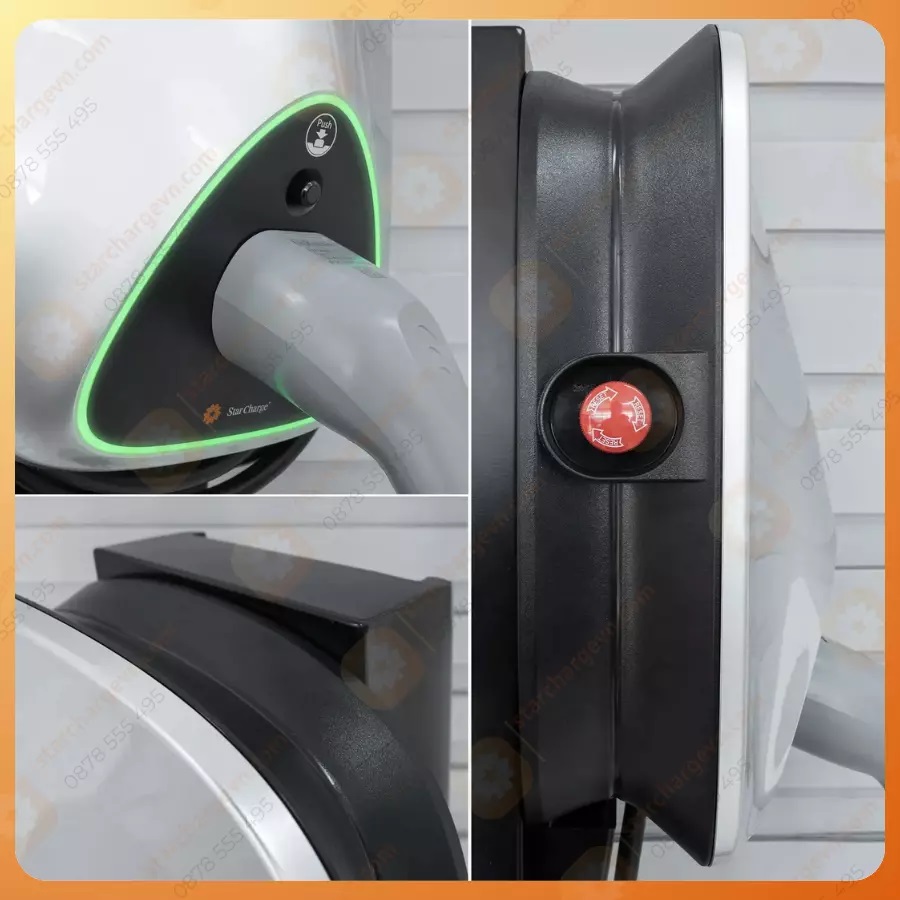

– Status indicator: LED strip.

– User authentication: RFID card, App, Credit card (optional).

– RFID reader: ISO/IEC 14443 A/B, ISO/IEC 18092 (optional), IEC/ISO 15693 (optional)

6. Connect

– Network interface: 4G, Wifi, Ethernet.

– Protocol (EVSE&Backend): OCPP 1.6J.

– Protocol (EVSE&EV):  Controller (default), ISO 15118 (optional)

7. Operating environment.

– Operating temperature: -30℃ to 50℃.

– Storage temperature: -40℃ to 70℃.

– Humidity: 5% to 95% non-condensing.

– Altitude: ≤2000m above sea level

8. Mechanical parameters

– IP rating:  IP54@ if class B, IP55@ if class C.

– IK rating: IK10.

– Cooling: Natural cooling.

– Charging cable length:  5m.

– Dimensions (WxHxD): 282*409*148mm.

– Approximate weight: 5.6 kg.

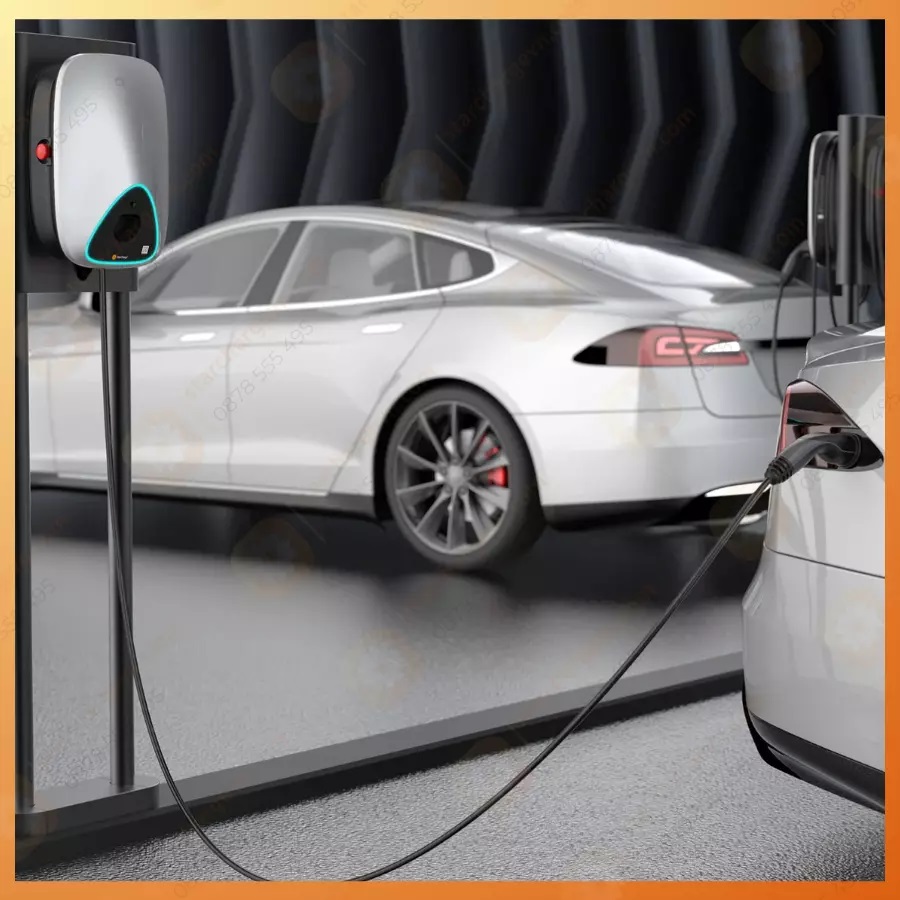

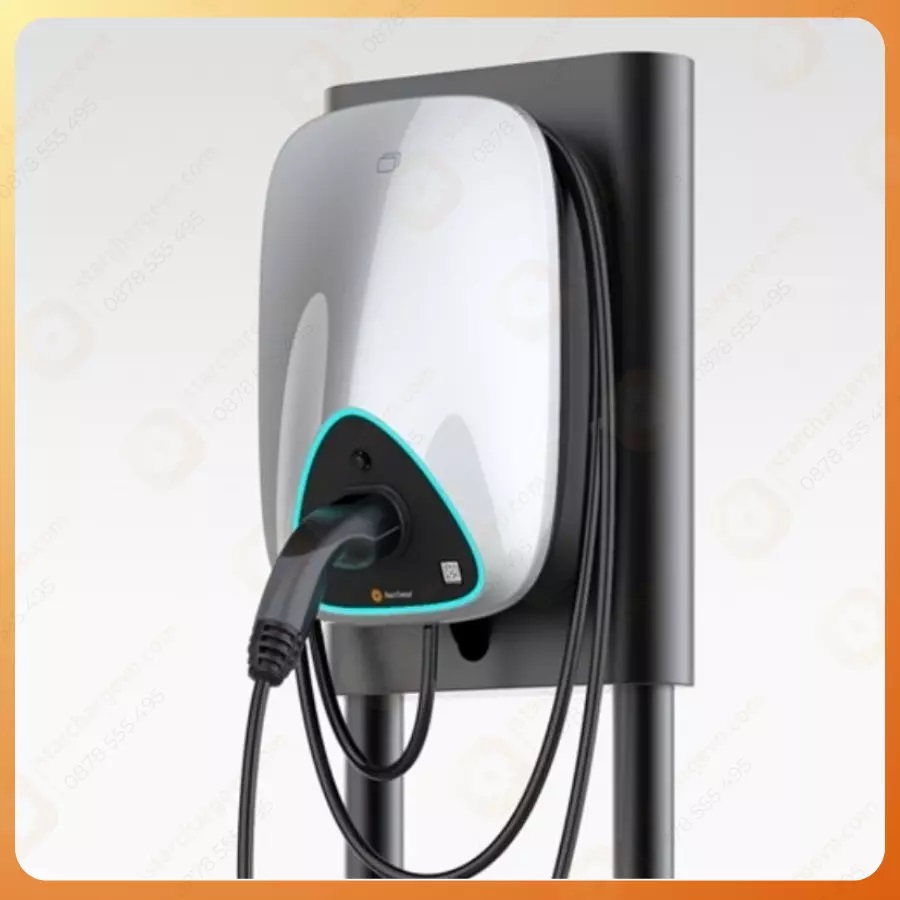

– Installation: Wall mounted, Column mounted (Column is optional) Certifications and standards.

Standard:

– IEC 61851-1, IEC 61851-21-2, LVD 2014/35/EU, RED 2014/53/EU

– Certificate: CE, TR25.
