Additional car for Artemis 7 KW STARCHARGE electric port Type 2 - GENUINE

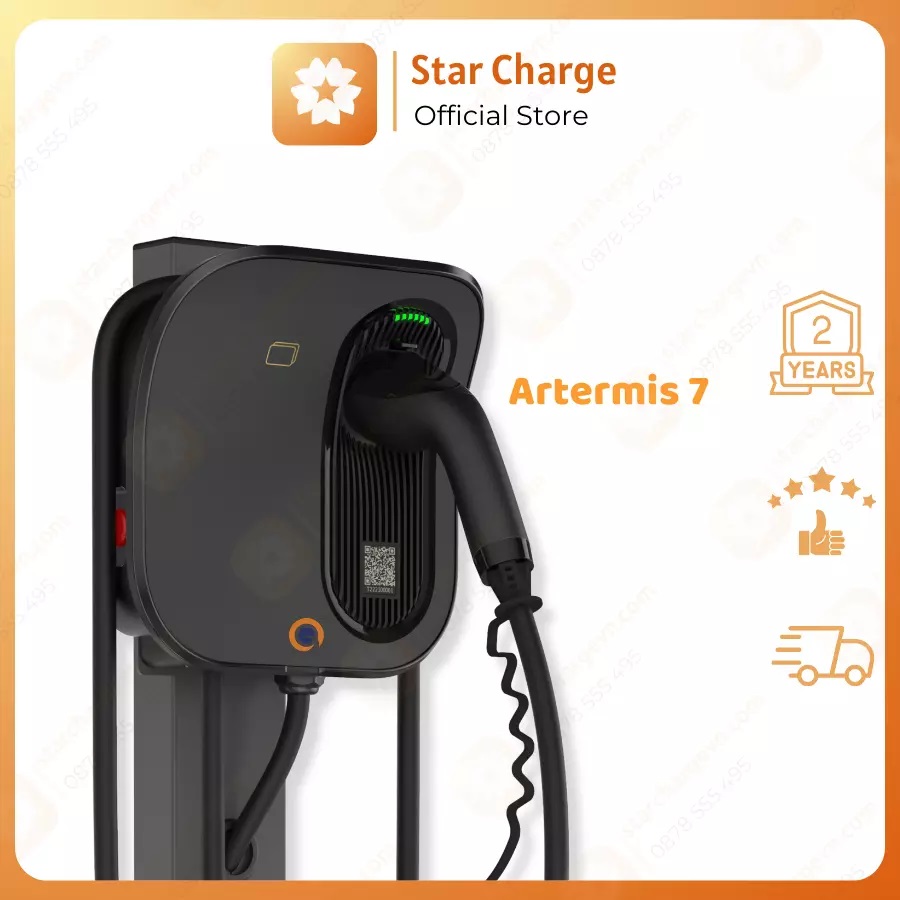

Artemis 7 KW STARCHARGE electric car charger Type 2 port - GENUINE

1. Product information:

- From China.

– Brand: Star Charge.

– Product line: AC charger.

– Classification: Artemis 7.

– Condition: new.

– Specification: black.

– Dimensions: 280*280*148 mm.

– Weight: approximately 3.75 kg.

– Target users: all types of type 2 electric cars, Vinfast car charger, car charger at home

– Warranty:  2 years.

2. Artemis 7 KW STARCHARGE electric car charger Type 2 port – GENUINE is a charging line with  Type 2. Maximum charging capacity is 7kw/32A.

3. Uses

Artemis 7 KW STARCHARGE electric car charger Type 2 port - GENUINE has the following uses:

– Over-current, over-voltage, over-temperature, reverse and short circuit protection, helping to protect the safety of electric vehicles and users.

– In addition, the Artemis 7 home car charger is a home charger that automatically cuts off power when the battery level is full, helping to ensure safe and effective charging.

– Suitable for all car models with type 2 charging port (type 2) and for all models of Vinfast car chargers.

4. Technical specifications:

– Input: 176~264Vac, single phase, 45~65Hz, L+N+PE.

- Output:

Output interface: Type 2 port (Case C)

Maximum AC output power 7kw

– Power factor ≥0.98 @ Full load

– Efficiency ≥94% @ Full Load (Peak)

– Mesh type: TN-C-S, TT, IT

5. User interface:

– Display 7 inch touch screen.

– Language support English (Other languages ​​available upon request).

– Buttons and Switches Emergency Button.

– User authentication RFID Card, App, Credit Card (optional).

– RFID reader ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693.

6. Connect

– Network interface: 4G, Wifi (optional), Ethernet.

– Protocol: (EVSE&Backend) OCPP 1.6J.

– Protocol: (EVSE&EV) DIN 70121, ISO 15118.

7. Operating environment

– Operating temperature -30℃ to 55℃.

– Storage temperature -40℃ to 85℃.

– Humidity 5% to 95% non-condensing.

– Altitude ≤3000m above sea level.

8. Mechanical parameters:

– Installation: Fixed installation on the ground

– Cable length: 5m or 7m.

– IP waterproof and dustproof protection level: IP55.

– IK bearing level: IK10.

9. Certification and standards for Artemis 7 car chargers

– Standards: IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED 2014/53/EU.

– Certificates:  CE, CB.
